Description
Offering near-silent performance, the HBN5 series introduces two innovative technologies, the True iQ Blower System and SmartSense Pro, and features selectable color temperature lighting (CCT technology). In addition to cutting-edge technology, it is equipped with Wi-Fi, Bluetooth and voice activation capabilities to offer a smarter, more enjoyable cooking experience. From performance and design to installation and safety, this series is the all-in-one ventilation solution.
Features
TRUE IQ TECHNOLOGY
True iQ Blower System, powered by TrueCFM technology, guarantees performance with automatic, real-time calibration; 620 or 1240 TrueCFM
SMARTSENSE PRO
Detects heat from the cooktop and automatically adjusts fan speed based on heat as well as humidity and VOC pollutants
CRT CODE READY TECHNOLOGY
Code Ready Technology® can limit airflow to 300, 400 or 600 CFM to comply with local make-up air code requirements
EZ 1™
EZ Install bracket system allows for simplified installation
Specifications
General
Series Name
HBN5
Blower Included
Yes
Airflow
1240 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Brushed Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi/Bluetooth Connectivity
• Voice Control
• SmartSense Pro
• BEST Kitchen app
• Code Ready Technology
• EZ 1™
• True IQ Technology
• Wi-Fi/Bluetooth Connectivity
• Voice Control
• SmartSense Pro
• BEST Kitchen app
• Code Ready Technology
• EZ 1™
• True IQ Technology
Ducting Information
10"
Speeds
8-speed Capacitive Touch Slider
Additional Information
• Quietest Blower System: Experience near-silent operation with the True iQ Blower system, powered by TrueCFM technology, which guarantees performance with automatic, real-time calibration; 1240 TrueCFM, less than 0.3 sones at low speed
• Built-In Versatility: Offered in 23-1/2" depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert will complement any kitchen design
• Perfectly Ventilated Experience: SmartSense Pro delivers an automated ventilation solution with smart algorithms detecting heat from the cooktop and automatically adjusting fan speed based on heat, humidity and VOC pollutants
• Our TrueCFM Promise: The range hood will always perform at the correct CFM, regardless of any unexpected blockages or restrictions
• Correlated Color Temperature (CCT) technology allows users to match range hood lighting with kitchen lighting from 2700K to 5000K; eight color temperature options via control panel, virtually limitless adjustability in the BEST Kitchen app
• Wi-Fi, Bluetooth and voice activation capabilities enable hands-free operation

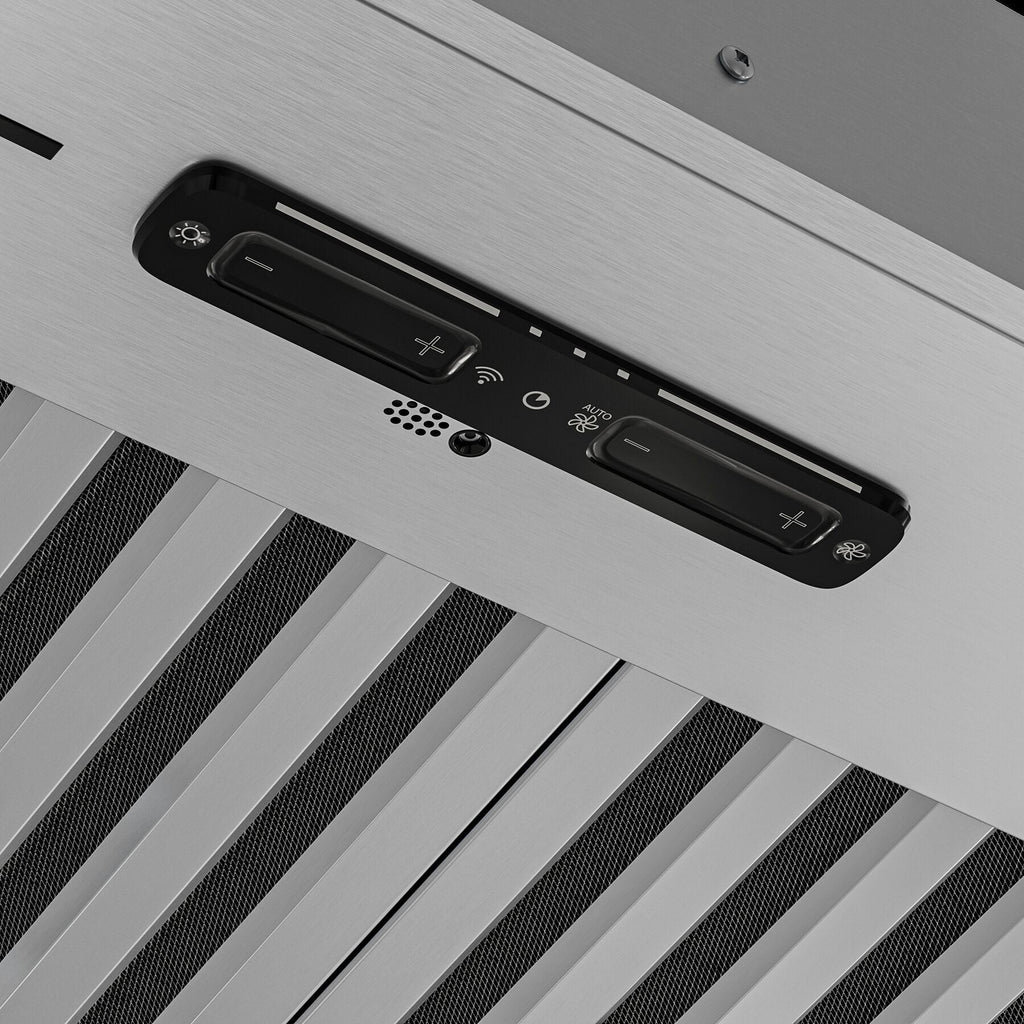

• Capacitive touch slider control offers eight fan speeds and eight LED lighting levels
• Hybrid Baffle™ filters provide full coverage to remove smoke, odors and pollutants
• Single-person installation with the EZ Install bracket system
• Code Ready Technology® (CRT) can limit airflow to 300, 400 or 600 CFM to comply with local make-up air code requirements
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures above 200°F are detected, protecting you and your home
• Capable installation with 10" vertical ducting
• Built-In Versatility: Offered in 23-1/2" depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert will complement any kitchen design
• Perfectly Ventilated Experience: SmartSense Pro delivers an automated ventilation solution with smart algorithms detecting heat from the cooktop and automatically adjusting fan speed based on heat, humidity and VOC pollutants
• Our TrueCFM Promise: The range hood will always perform at the correct CFM, regardless of any unexpected blockages or restrictions
• Correlated Color Temperature (CCT) technology allows users to match range hood lighting with kitchen lighting from 2700K to 5000K; eight color temperature options via control panel, virtually limitless adjustability in the BEST Kitchen app
• Wi-Fi, Bluetooth and voice activation capabilities enable hands-free operation
• Capacitive touch slider control offers eight fan speeds and eight LED lighting levels
• Hybrid Baffle™ filters provide full coverage to remove smoke, odors and pollutants
• Single-person installation with the EZ Install bracket system
• Code Ready Technology® (CRT) can limit airflow to 300, 400 or 600 CFM to comply with local make-up air code requirements
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures above 200°F are detected, protecting you and your home
• Capable installation with 10" vertical ducting
Electrical Information
Information
120 V
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Included
Backdraft Damper
Dimensions
Class Width
36"
Width
34.5 inch(es) / 87.63 cm
Height
14 inch(es) / 35.56 cm
Depth
22.87 inch(es) / 58.10 cm
Warranty
Warranty
5-Year Parts/2-Year Labor
